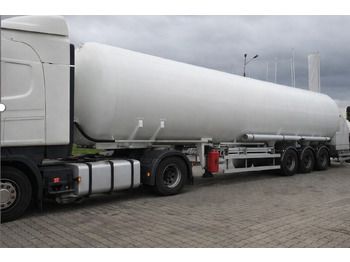

We offer for sale a cryogenic tanker designed for the transport of LNG (UN 1972 – METHANE, refrigerated natural gas, liquefied) of the ISISAN brand.Technical data:
- year of manufacture: 2020,
- standards and design codes: EN 13530, ADR,
- tank code: R10.4 BN,
- test pressure: 10.4 bar,
- maximum operating pressure: 7 bar,
- tank capacity: 49,400 l,
- design temperature: –196°C,
- inner tank material: stainless steel,
- outer tank material: stainless steel,
- tank insulation: vacuum (thermal) insulation.
Weights and dimensions:
- maximum gross vehicle weight: 35,000 kg,
- permissible gross vehicle weight: 35,000 kg,
- vehicle curb weight: 13,900 kg,
- permissible payload: 21,100 kg,
- maximum permissible axle load: 78.40 kN.
Axles and suspension:
- number of axles: 3,
- suspension: air,
- EBS system,
- aluminum rims,
Equipment:

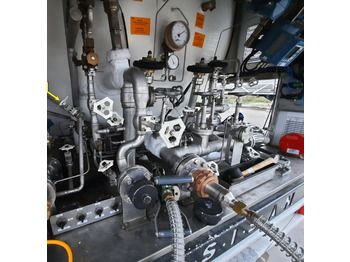

- final connections for loading, unloading, and the gas phase,
- evaporator,
- hydraulically driven pump,
- EMERSON measuring system.
Documentation:
- ADR certificate,
- registration certificate,
- TDT report,
- TPED 2010/35/EU certificate/declaration,
- measuring system calibration certificate.
For any questions, please contact Piotr at 506 571 635.
