Leasing of XCMG QY100K 100T

Published: 15d

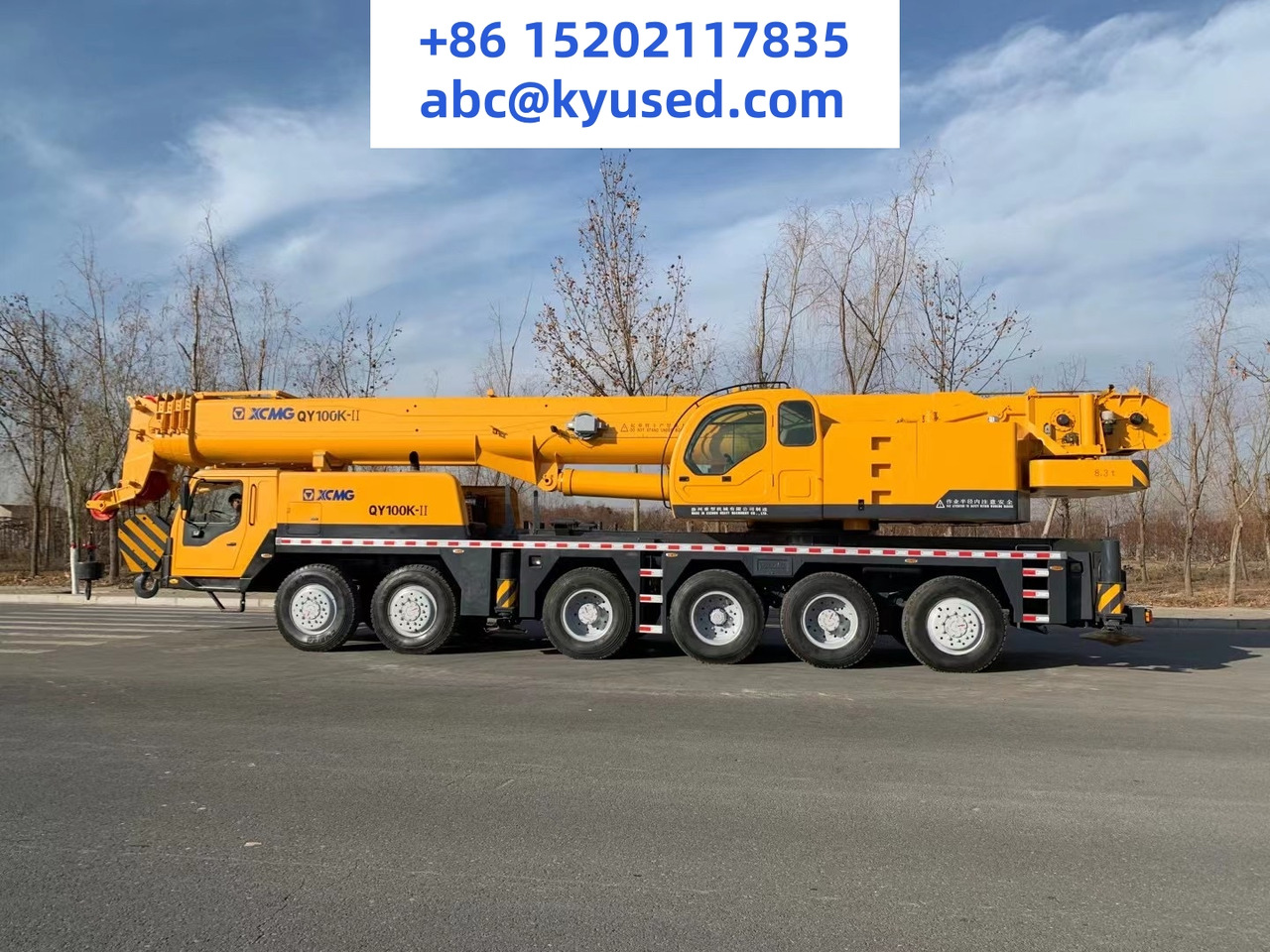

Leasing of XCMG QY100K 100T XCMG QY100K 100T: picture 2

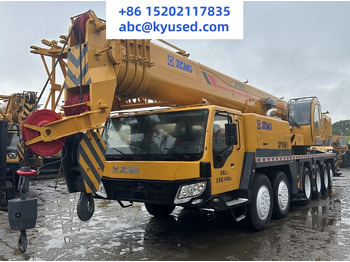

Leasing of XCMG QY100K 100T XCMG QY100K 100T: picture 3

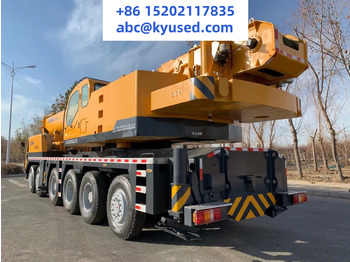

Leasing of XCMG QY100K 100T XCMG QY100K 100T: picture 4

Leasing of XCMG QY100K 100T XCMG QY100K 100T: picture 5

Leasing of XCMG QY100K 100T XCMG QY100K 100T: picture 6

Published: 15d

Brand

XCMG

Model

QY100K 100T

Year of manufacture

2023

Condition

excellent

Color

yellow

Location

China, No. 3755 Jinshan Avenue, Jinshan District, Shanghai, China

Additional

warranty

More information

XCMG QY100K Crane Parameter Configuration

Lifting capacity

Maximum rated lifting capacity (t) 100

Minimum working range (m) 3

Maximum rated lifting torque (KN. m) 3450

Maximum lifting height - basic arm (m) 13.5

Maximum lifting height - fully extended arm (m) 50.9

Maximum lifting height - basic arm+auxiliary arm (m) 70.4

Maximum lifting capacity (ton) 45-90 tons

Crane arm size

Crane arm length - Basic arm (m) 13.5

Crane arm length - basic arm+auxiliary arm (m) 51+18.1+4

Homework speed parameter

Maximum lifting speed of the main winch (m/min) 105

Maximum lifting speed of auxiliary winch (m/min) 104

Crane arm full extension time (s) 160

Crane boom amplitude time (s) 75

Rotation speed (rpm) 2

engine

Chassis engine model WP12.460N

Rated power (kw/rpm) 338/1900

Onboard engine TAD720VE TAD750VE

Rated power (kw/rpm) 174/2300 181/2300

Driving parameters

Maximum driving speed (km/h) 80

Minimum turning radius (m) 12

Maximum climbing gradient (%) 40

Approach angle/departure angle (°) 20/14

Minimum ground clearance (mm) 300

Whole machine specifications

Total length of the machine (mm) 15600

Overall width of the machine (mm) 3000

Whole machine height (mm) 3850

Total weight (t) 54.9

Wheelbase (mm) 1420+2420+1800+1420+1505

Leg span

Vertical x Horizontal (m) 7.56 x 7.6

USED XCMG 100TON TRUCK CRANE

Contact Person:Jenny

Whats App / We chat: +86 15202117835

Mobile: +86 15202117835

Email: abc@kyused.com

Details

Place of Origin:China

Operating Weight:100ton

Core Components:Pump, Gearbox, Engine

Packing & Delivery

Container,bulk,and roro are all available ! which ever is convient for you!
