Warehouse equipment TSC4500X2A LP wheel alignment lift - On floor - Free wheel lifting system - 4.8 m led lightened runways (63 cm wide) - 210 cm lifting height - 4.5 T

Published: 10d

PDF

Warehouse equipment TSC4500X2A LP wheel alignment lift - On floor - Free wheel lifting system - 4.8 m led lightened runways (63 cm wide) - 210 cm lifting height - 4.5 T: picture 1

Published: 10d

PDF

8 250EUR

≈ 2 741 293 PKR
≈ 9 639 USD

Length

4800 mm

Width

630 mm

Lifting capacity

4500 kg

Lift height

2100 mm

Voltage

400V

VIN

Location

Netherlands, Molenlei 2i 1921 CZ Akerlsoot, The Netherlands

More information

The price is excluding tax and delivery costs

Capacity: 4500 kg - On floor

Drive motor: 3 kW

2nd scissor: 3.5T - H43cm - L148 -- 192 cm

LED runway lighting with protection grilles; Hose set + floor covers; IR synchronization monitoring

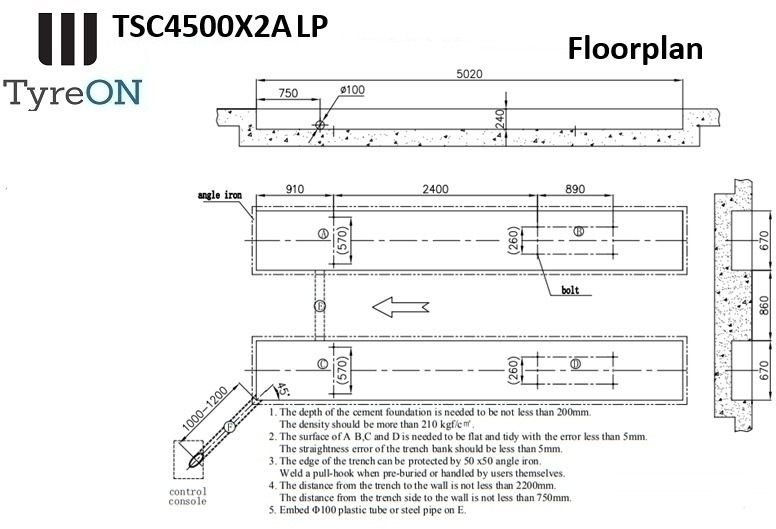

Foundation: C20/25 - 555 x 280 x 20 cm

Lifting/Lowering: 60 s

Packaging: L520 x B80 x H50 cm - 2700 kg (scissorlift)

Hydraulic oil is not included: 20 L TyreON HV-ISO-32 is optional

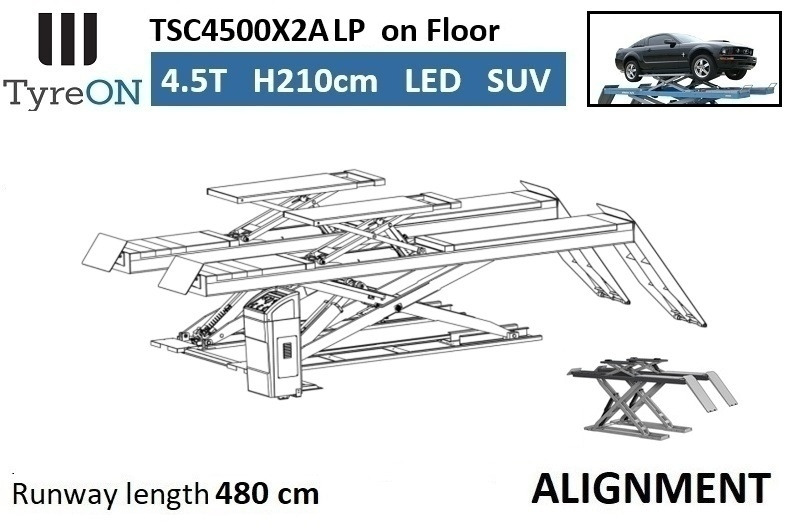

Alignment lift - Wheels-free lifting system - On floor mounted

With double tip-lever system and 24 cm flat.

The second scissor makes it possible to lift a vehicle with all four wheels free.

With sliding plates at the back and recesses with insert plates for turntables at the front.

Simple to use and maintain, space-saving design.

A runway is made from a single steel plate and cut to size with a laser cutter.

Robust 4.5T on floor alignment scissor lift.

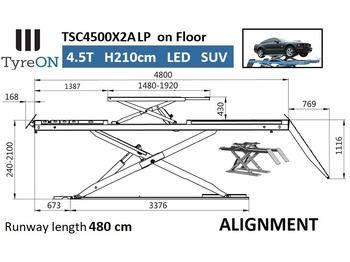

Perfectly balanced on-floor alignment lift for precise wheel alignment with 90 cm room between the 480 cm long runways.

New!
Installation height only 24 cm

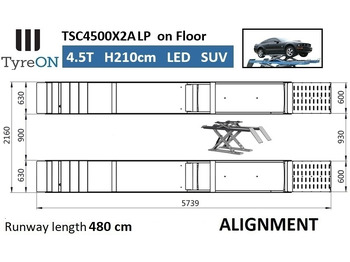

Alignment lift with a total length with ramps of 608 cm

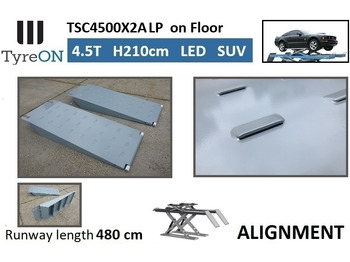

Punched ramps (anti-slip profile)
Wide runways of 63 cm
Within 60 sec. to the highest point
The platforms of the wheel-free lifting system (2nd scissor) are extendable
Runways with cutouts for turntables - shims included
Runways with built-in movable rear wheel plates – mechanically locked
The movable rear wheel plates are extra long - 1.92 meter
Large working range from very short to very long wheelbase
Integrated LED lighting over the full length of runways (protected with grilles)
Emergency lowering system in the event of power failure
Smooth and safe lifting and lowering, eight cylinders for both runways and two cylinders for the wheel-free lift system
Heavy duty 3 kW hydraulic pump with load-dependent lowering valve
Multifunctional: for inspection, maintenance, repair, wheel alignment, testing of headlights and driver assistance systems, etc.
Required air connection 4 - 8 bar

Levering inclusief

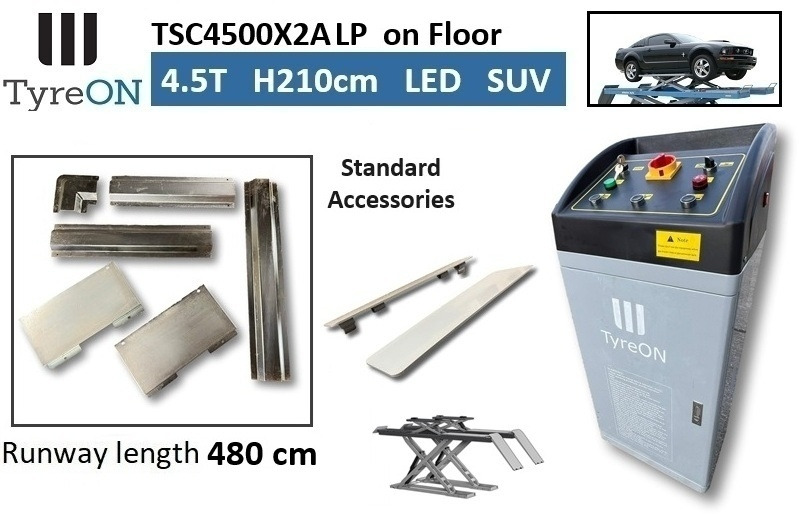

Installation and operating manual for the alignment scissor lift
Set of galvanized gutters and floor protection caps
Wiring to the alignment scissor lift, hydraulic and pneumatic hose set + accessories

Hydraulic oil is not included - 20 Liters of HV-ISO-32 can be ordered as an option for the alignment scissor lift
