Drilling rig Geotec Rotomax M
Published: 4mo 5d
Published: 4mo 5d
Leasing
Available on request1,186 Hours
ROTOMAX M drilling rig for well construction & geothermal energy
Chassis:
Sandwich chassis with integrated fuel/
Hydraulic oil tank for approx. 70 L diesel and approx. 150 L hydraulic oil, bio-oil Panolin HLP SYNTH 46
4-fold hydraulic outriggers; 4-roller rubber track undercarriage with 250 mm
Drive unit:
4-cylinder diesel engine 44 kW/60 HP, water-cooled with directly driven axial piston variable displacement pump, oil cooler, oil supply/return filter, soundproofing, emissions standard according to EU Directive 97/68 Stage 3A
Basic hydraulic system:
Single-circuit, load-independent system (load sensing),
Proportional, directly or via remote control.
Maximum pump output 105 litres at 2400 rpm, max. system pressure: 190 bar. 3 pressure displays (system pressure, mud pressure, feed down).
Standard drill mast:
Feed carriage guided by cam rollers, with interchangeable plate for mounting various drive heads.
Travel length: see dimensional sketch. Tensile and compressive force 4000 kg. Contact pressure throttled to approx. 1000 kg so that the device cannot lift out from the mast side.

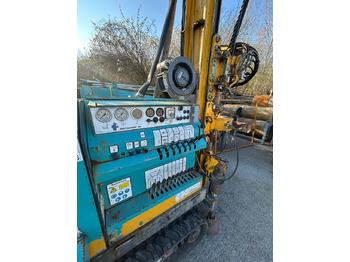

Manual control functions: “Main group”
Drill drive; drill feed; water pump; cable winch; cable impact mechanism; crawler chassis right; crawler chassis left, a total of 6 valves.
Manual drilling operation via control valves
Manual control function “Subgroup”
Supports up/down; track adjustment of the crawler chassis; mast erecting; mast extension; swivel drill head; support clamp; pipe press clamp; total of 10 valves
Mast-side support:
Support telescopic from 780 mm to 1400 mm to increase the stability of the drilling rig during drilling
Flushing head for direct directional drilling: Item 70
Drive pin PSG 76
Work lights on mast extension; 2 plug-in lights attached. Incl. wiring and electrical system
Mast extension with cable deflector M
Rotomax M extension 1000 mm hydraulically operated, deflection 500 mm from drilling axis, 6-500675
ROTOMAX M cable winch
Hydraulically driven free-spooling winch, with 40 m cable, 8 mm cable diameter, 1400 kg pulling force,
3-310020
Rotomax M L XL 1500 cable impact mechanism, lifting height-adjustable free-fall impact mechanism
Maximum stroke 500 mm, max. impact weight 300 kg
Impact rate 0-40 rpm
3,000kg Operating weight
